| CAPACITY IN TONNES | DISTANCE BETWEEN COLUMN | DISTANCE BETWEEN RAM TO BED | STROKE | MOTOR H.P. |
|---|---|---|---|---|
| 5 | 160X400 | 125X500 | 75 | 2 |
| 15 | 200X750 | 125X500 | 100 | 2 |
| 25 | 280X800 | 175X800 | 125 | 3 |
| 40 | 375X950 | 175X900 | 140 | 3 |
| 60 | 425X1010 | 175X900 | 150 | 5 |
| 75 | 450X1125 | 175X900 | 150 | 5 |
| 150 | 600X1300 | 175X900 | 150 | 5 |
| 100 | 500X1200 | 200X1000 | 150 | 7.5 |
| CAPACITY IN TONNES | DISTANCE BETWEEN COLUMN | DISTANCE BETWEEN RAM TO BED | STROKE | MOTOR H.P. |
|---|---|---|---|---|
| 5 | 160X400 | 125X500 | 100 | 2 |
| 15 | 200X750 | 125X500 | 150 | 2 |
| 25 | 280X800 | 175X800 | 175 | 3 |
| 40 | 375X950 | 175X900 | 175 | 3 |
| 60 | 425X1010 | 175X900 | 200 | 5 |
| 75 | 450X1125 | 175X900 | 200 | 5 |
| 150 | 600X1300 | 175X900 | 200 | 5 |
| 100 | 500X1200 | 200X1000 | 225 | 7.5 |
| 200 | 700 X 1400 | 400X1200 | 225 | 10 |
| 250 | 800X1500 | 400X1200 | 250 | 15 |
| 100 | 900X1600 | 400X1200 | 250 | 20 |

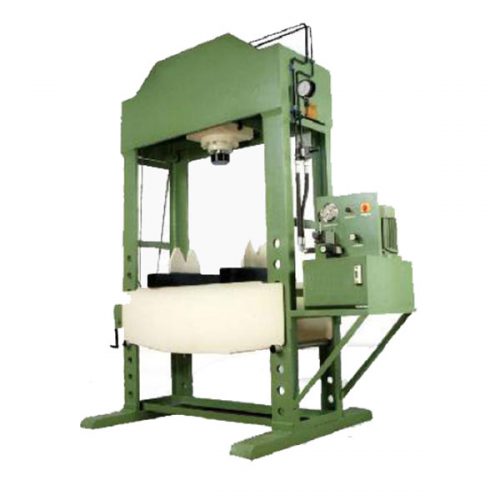

These Sturdy moderality priced presses are for general shop usage for maintenance like bearing assembly, rivetting & other fitting jobs. They can be supplied with fixtures as required.
